TRANSITIONS® Modular Entry Ramp

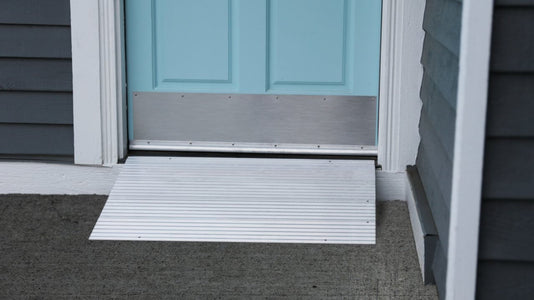

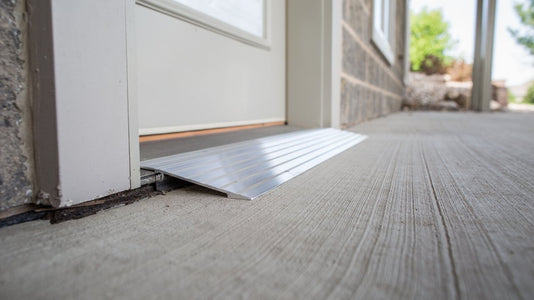

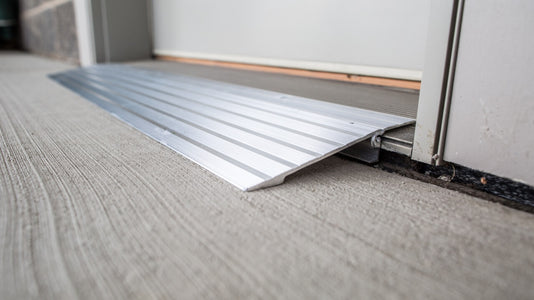

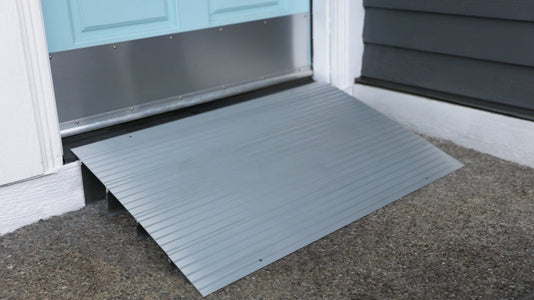

The TRANSITIONS® Modular Entry Ramp is perfect for doorways to create a smooth, sturdy, and seam-free surface for wheelchair, scooter, walker, and cane users. It is made with high-strength aluminum that will never rust or corrode and has an extruded slip-resistant surface for superior traction. Ideal for doorways, sliding glass doors, and raised landings. It is lightweight and easily transported from one place to the next for added convenience. Sizes are available to accommodate thresholds up to 6.25" high. Browse through the tabs below to learn more.

Lifetime Warranty

Ships in 1-3 Business Days

Best

Size
Weight Capacity: 700 lbs.
$54.00
$54.00

Also available through our authorized online retailers

Ask any question on this product

The TRANSITIONS® Modular Entry Ramp is perfect for doorways to create a smooth, sturdy, and seam-free surface for wheelchair, scooter, walker, and cane users. It is made with high-strength aluminum that will never rust or corrode and has an extruded slip-resistant surface for superior traction. Ideal for doorways, sliding glass doors, and raised landings. It is lightweight and easily transported from one place to the next for added convenience. Sizes are available to accommodate thresholds up to 6.25" high. Browse through the tabs below to learn more.

MADE OF ALUMINUM
MADE OF ALUMINUM

Made from high-strength aluminum that will not rust or corrode and can support up to 700 pounds.

SLIP-RESISTANT SURFACE

Features a safe, extruded slip-resistant surface for superior traction.

SLIP-RESISTANT SURFACE
ADJUSTABLE FLAP
ADJUSTABLE FLAP

This ramp is available in 1, 1.5, 2, 3, 4, 5, and 6-inch heights, however the pivoting flap can be attached to the top of the ramp to provide ¼" of additional adjustability. See "Specs" tab for accommodating height ranges.

MODULAR DESIGN

Its modular design allows you to use the ramp within its intended height range or at a lower height by removing one or multiple sections.

MODULAR DESIGN

TMER 1
TMER 1.5
TMER 2
TMER 3
TMER 4
TMER 5
TMER 6
Made Of Aluminum
✓
✓
✓
✓
✓
✓
✓
Slip-Resistant Surface
✓
✓
✓
✓
✓
✓
✓
Usable Size W/ Top Flap ( L X W X H )
6.67" x 34" x 1"
9.19" x 34" x 1.5"
11.67" x 34" x 2"
16.64" x 34" x 3"
21.64" x 34" x 4"
26.64" x 34" x 5"
31.64" x 34" x 6"
Usable Size W/O Top Flap ( L X W X H )
4.82" x 34" x 1"
7.32" x 34" x 1.5"
9.8" x 34" x 2"
14.77" x 34" x 3"
19.77" x 34" x 4"
24.77" x 34" x 5"
29.77" x 34" x 6"
Usable Height Range
.75" - 1.25"
1.25" - 1.75"
1.75" - 2.25"
2.75" - 3.25"
3.75" - 4.25"
4.75" x 5.25"
5.75" - 6.25"
Weight
3 lbs.
5 lbs.
5.5 lbs
8 lbs.
11 lbs.
15 lbs.
20 lbs.
Weight Capacity
700 lbs.
700 lbs.
700 lbs.
700 lbs.
700 lbs.
700 lbs.
700 lbs.
For Wheelchairs & Scooters
✓
✓
✓
✓
✓
✓
✓
For Residential Use
✓
✓
✓
✓
✓
✓
✓
Warranty
Lifetime
Lifetime
Lifetime
Lifetime
Lifetime
Lifetime
Lifetime

- Refer to your mobility equipment's owner guide for acceptable ramp usage, including proper slope/incline, chair direction, etc.; never exceed its recommendations.

- Weights and dimensions are approximate and subject to change.

- For additional specs, see “Documents” tab.

Brochure Technical Specifications Instructions Warranty (Lifetime Warranty)

Although it's our intent to keep all documents current, some documents are subject to change and may take time to update. If you are unsure whether you have the most current revision or if your product is different, contact our technical support.

Does this product require assembly?

Yes, the sections hook together and are secured in place by provided screws.

Does the ramp butt up to the opening or is there a lip that sits on top of the door track?

The ramp can do either or. There is a top pivoting flap that provides an additional .25” of adjustability and can be slid in or kept out. If in, the ramp would be set against the door threshold and the flap would rest on top of it. If the flap is kept out, the ramp would butt up against the door threshold and wouldn’t interfere with door styles such as a sliding glass door with a track.

My door threshold is 3.5" high. Should I order a 3" or 4" ramp?

Because this is in between sizes, consider purchasing a TRANSITIONS® Angled Entry Ramp, which is also made of aluminum and has adjustable feet to meet your threshold rise requirements.

How do I keep the ramp from moving around?

Pre-drilled holes are available for anchoring at both the top and bottom of the ramp. Anchoring hardware is not provided.
