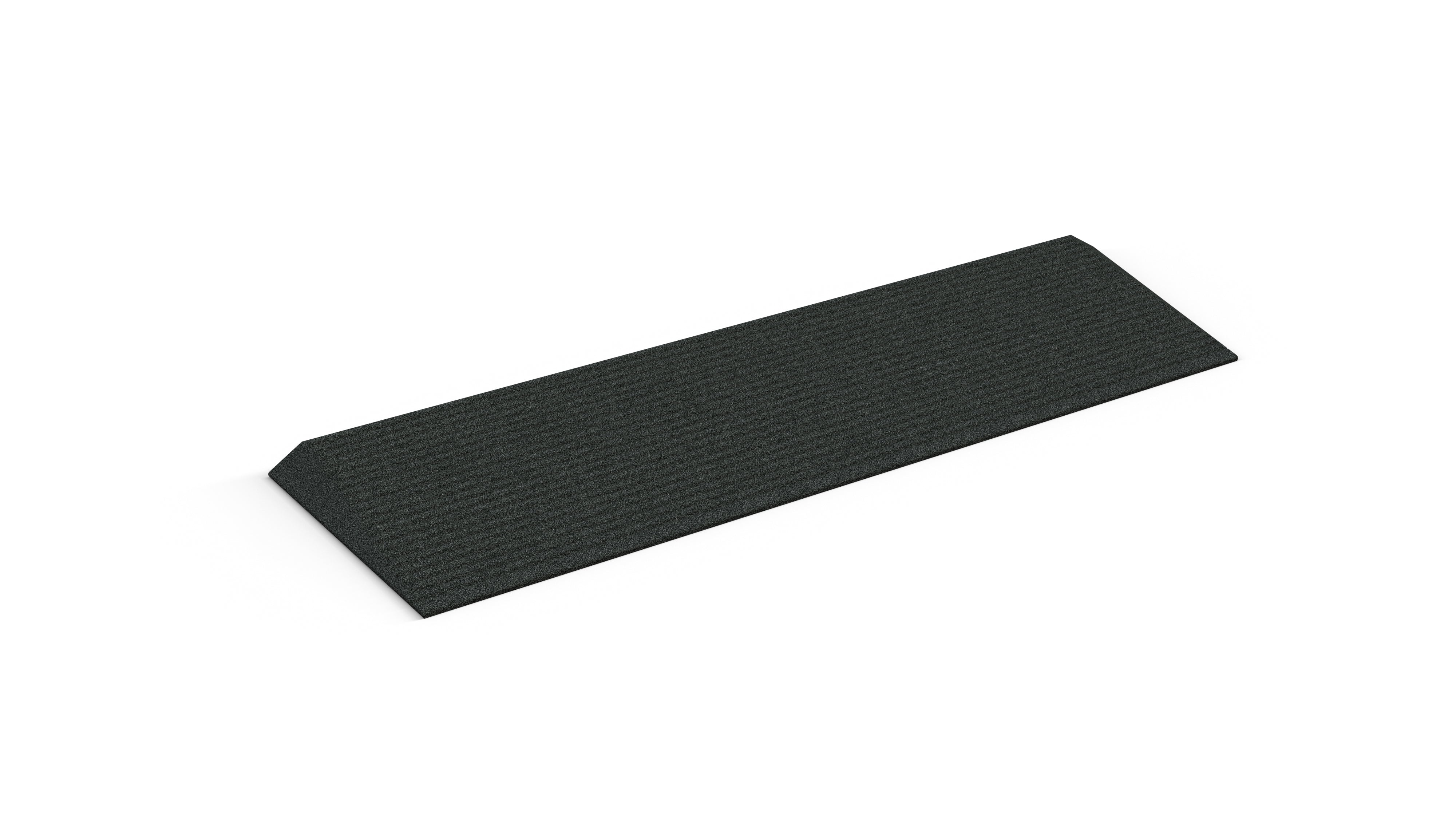

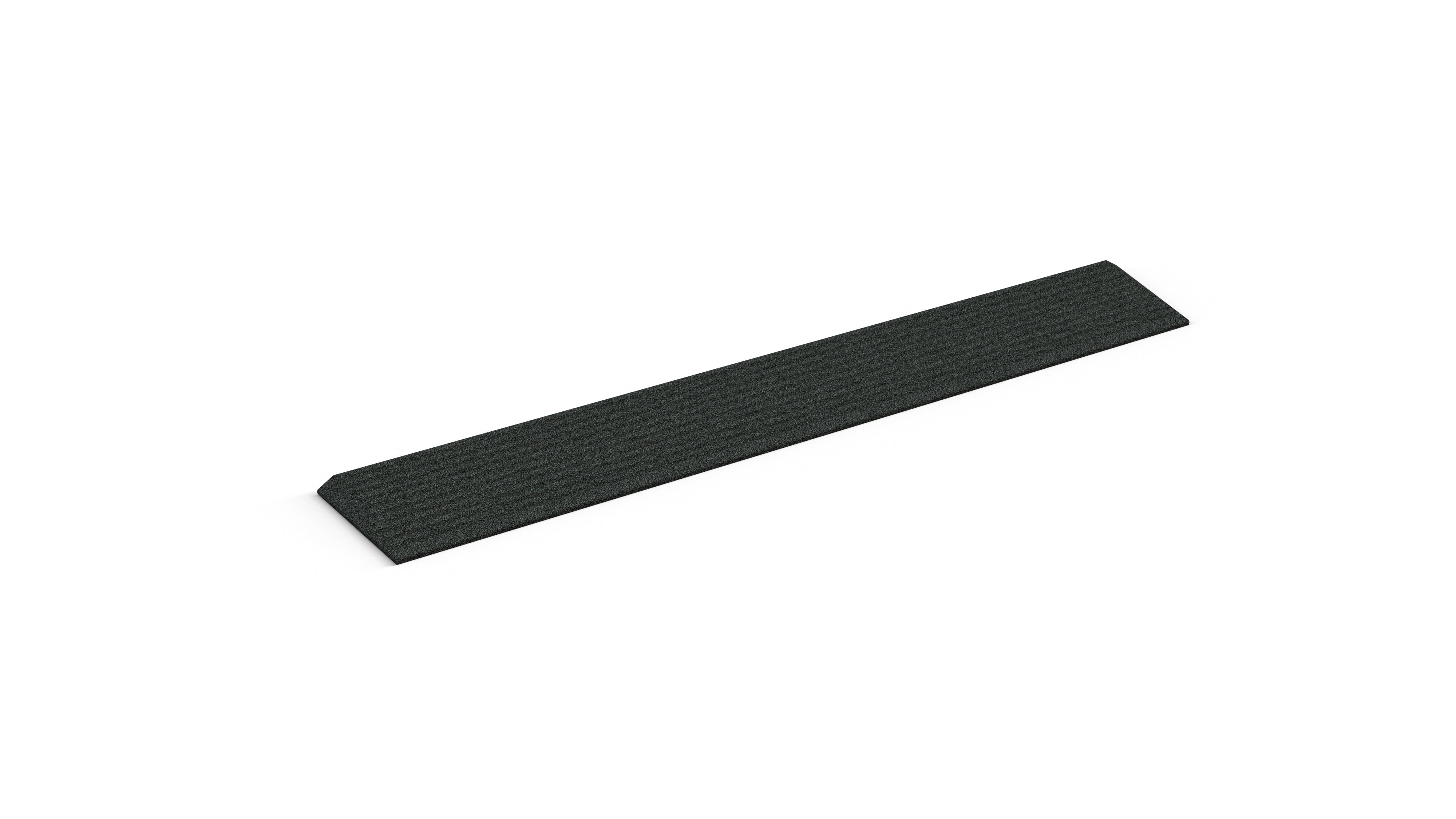

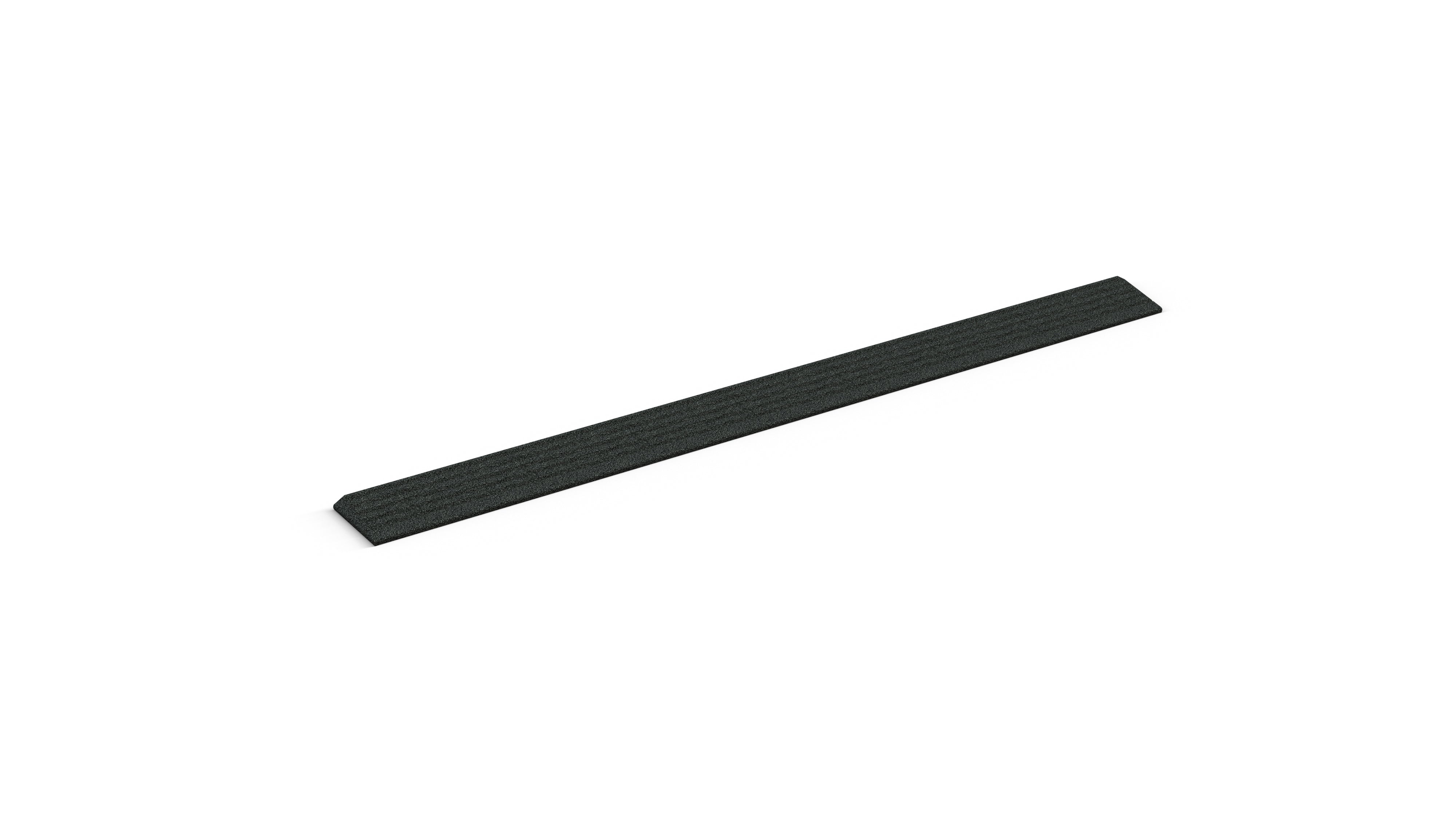

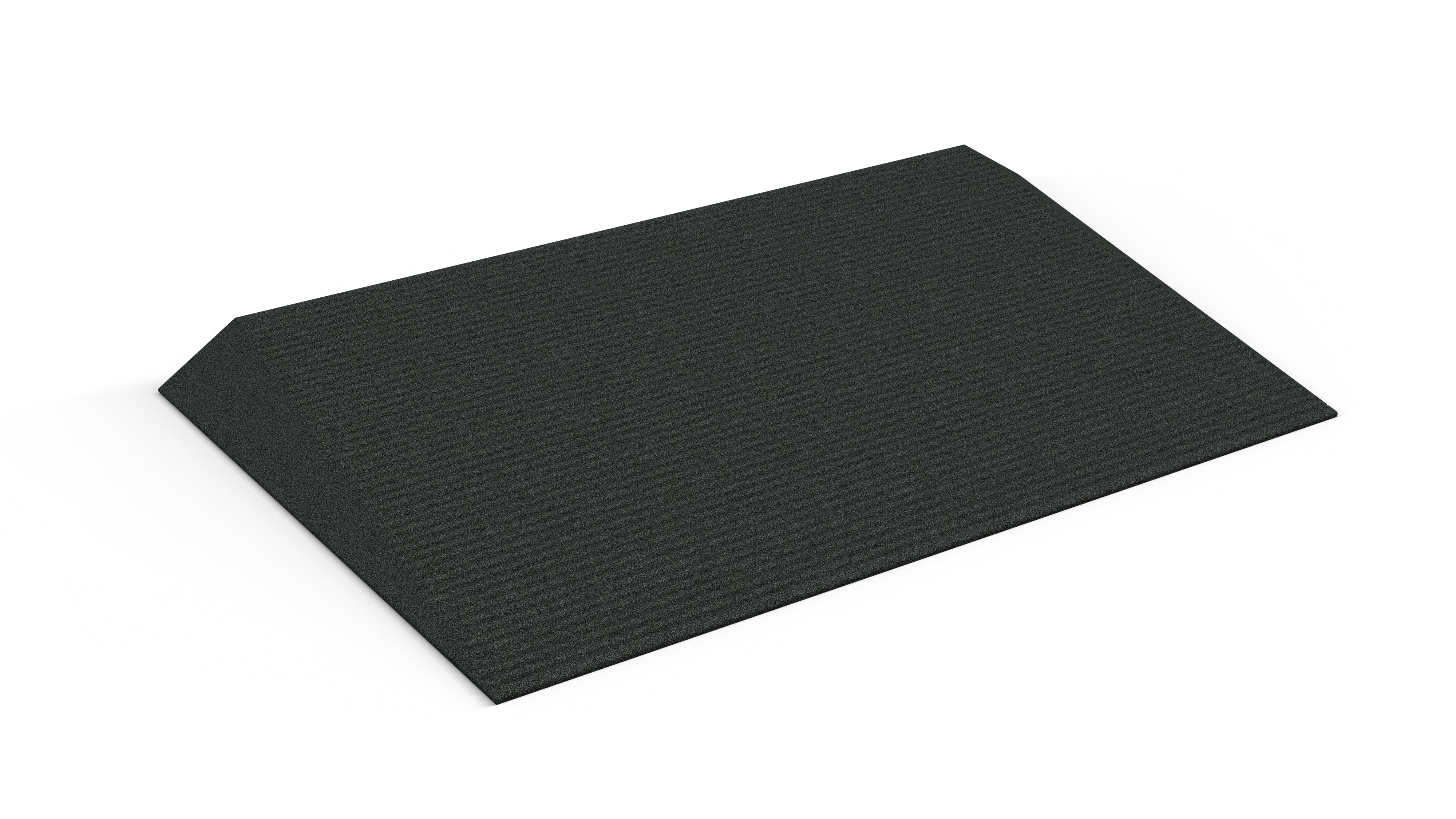

TRANSITIONS® Angled Mat Residential

TRANSITIONS® Angled Entry Mat - EZ-ACCESS

Features
Specs
Documents
FAQs

CUSTOM FIT

Available in heights ranging from 1/2" to 2-1/2" in quarter-inch increments, but trimming can be done to decrease the height of the mat to ensure an optimal fit. If necessary, the mat can also be notched to suit the doorjamb configuration or accommodate other obstructions.

MADE WITH RECYCLED RUBBER

This eco-friendly mat can be used safely on nearly any surface and can withstand harsh weather conditions and indoor/outdoor, high-traffic use. The durable rubber is naturally slip-resistant, and its dense properties help keep the mat in place. Anchoring hardware is included.

FUNCTIONAL DESIGN

Recessed grooves trap dirt and debris and the edgeless design allows for water drainage.

BEVELED EDGES

Allows cross-traffic access and provides an attractive, finished look.

1/2"

3/4"

1"

1-1/4"

1-1/2"

1-3/4"

2"

2-1/4"

2-1/2"

Made From Recycled Rubber

✓

Slip-Resistant Surface

✓

Available Styles

Blank

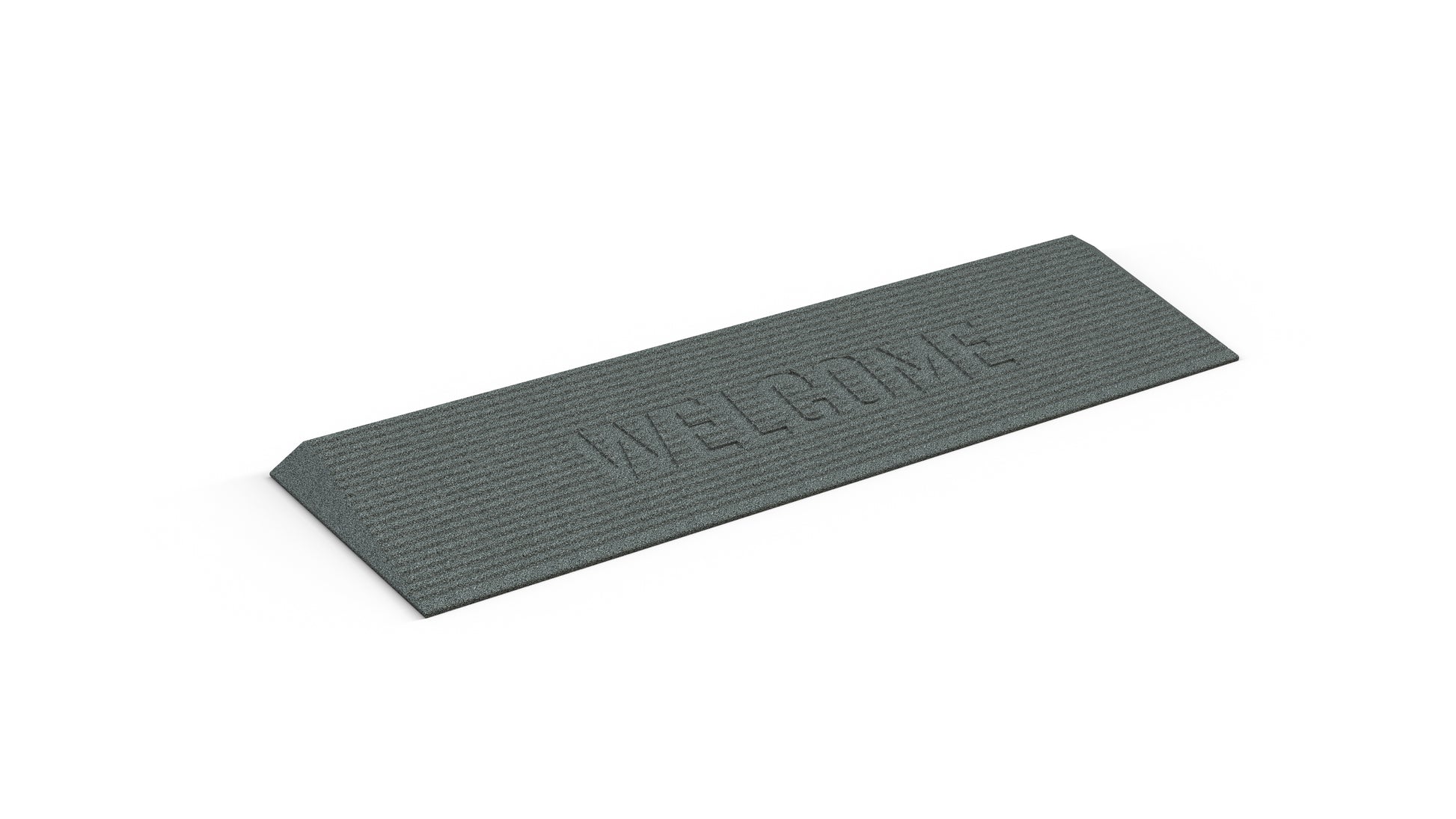

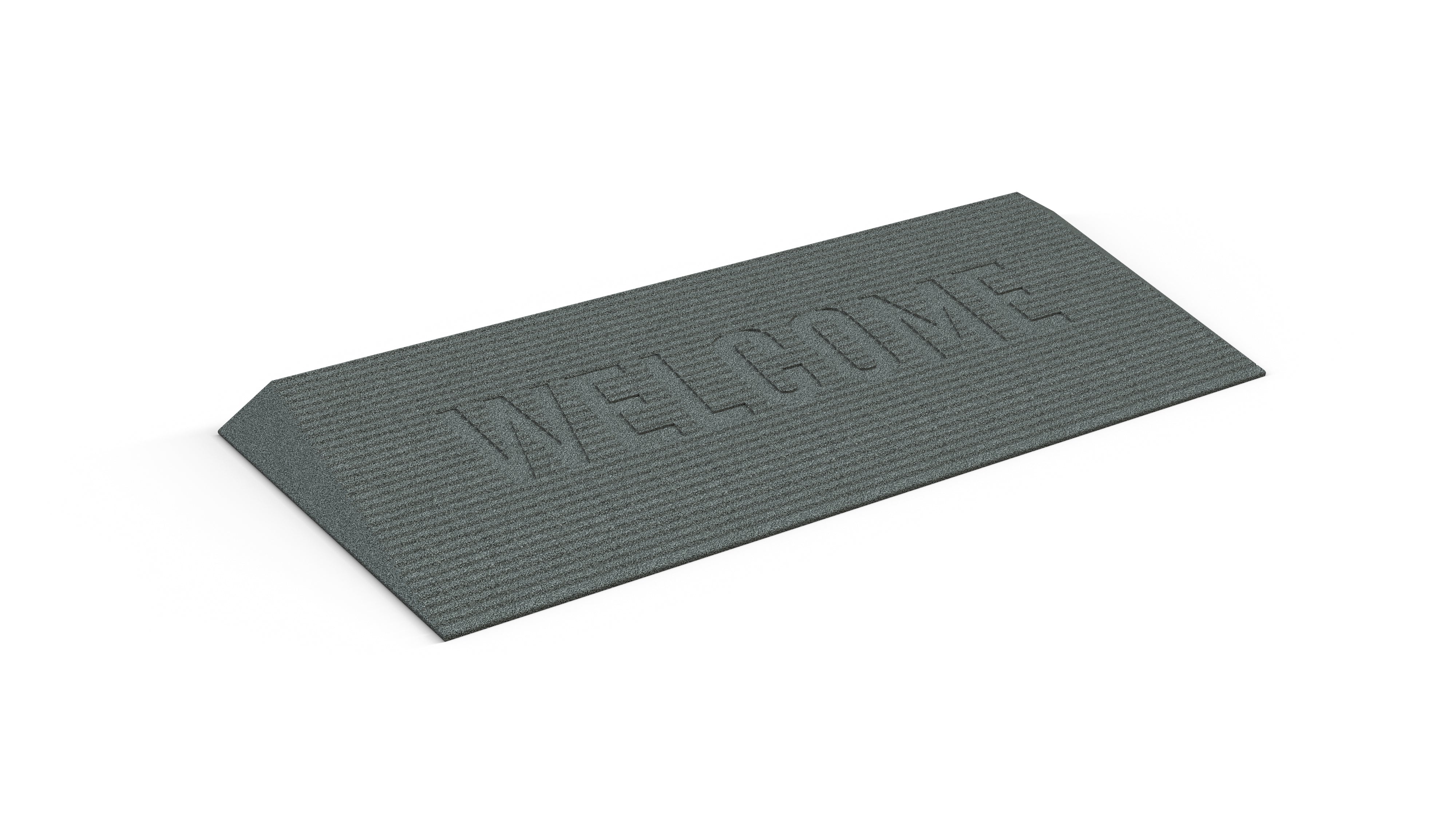

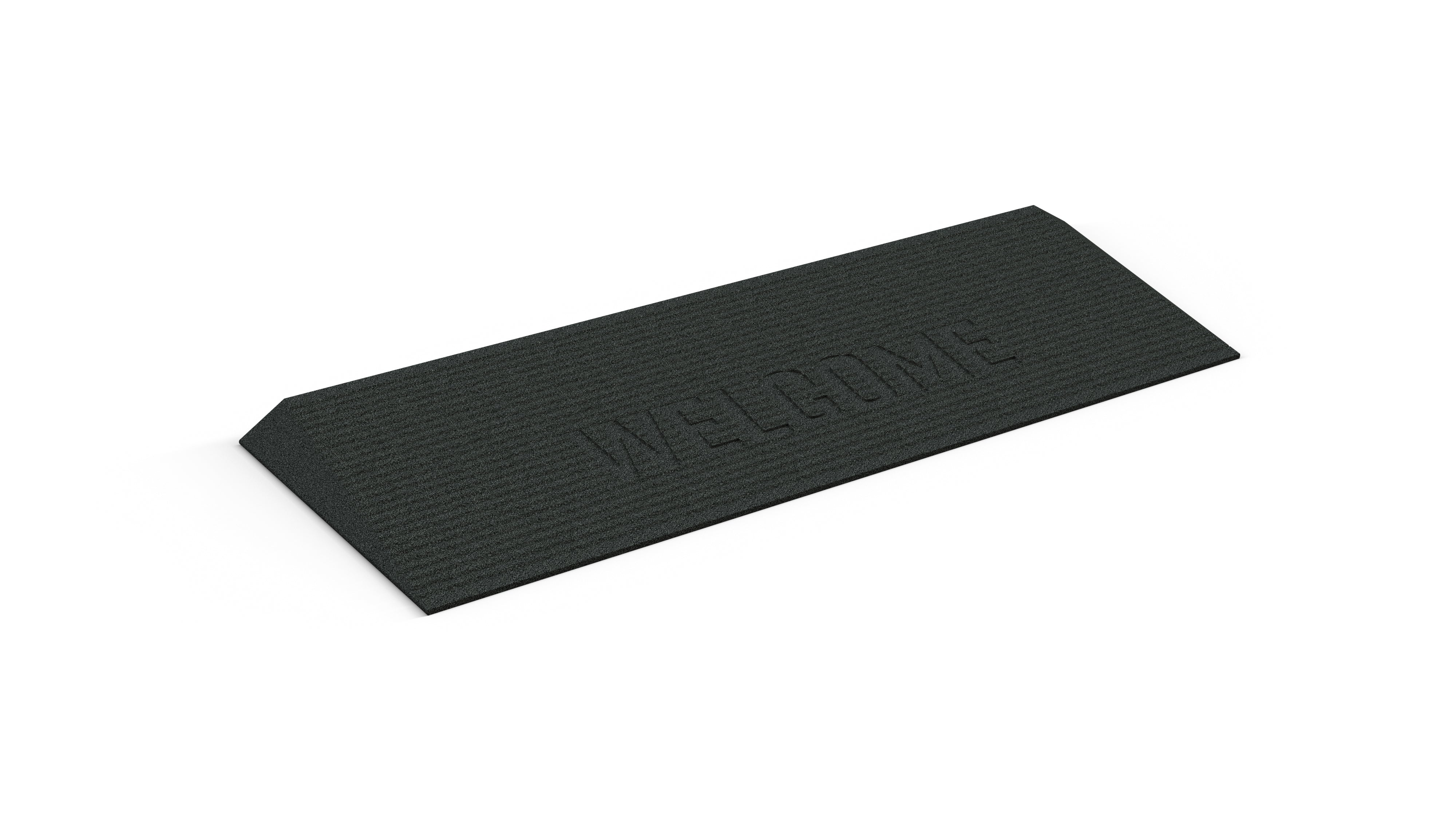

Blank or Welcome

Available Colors

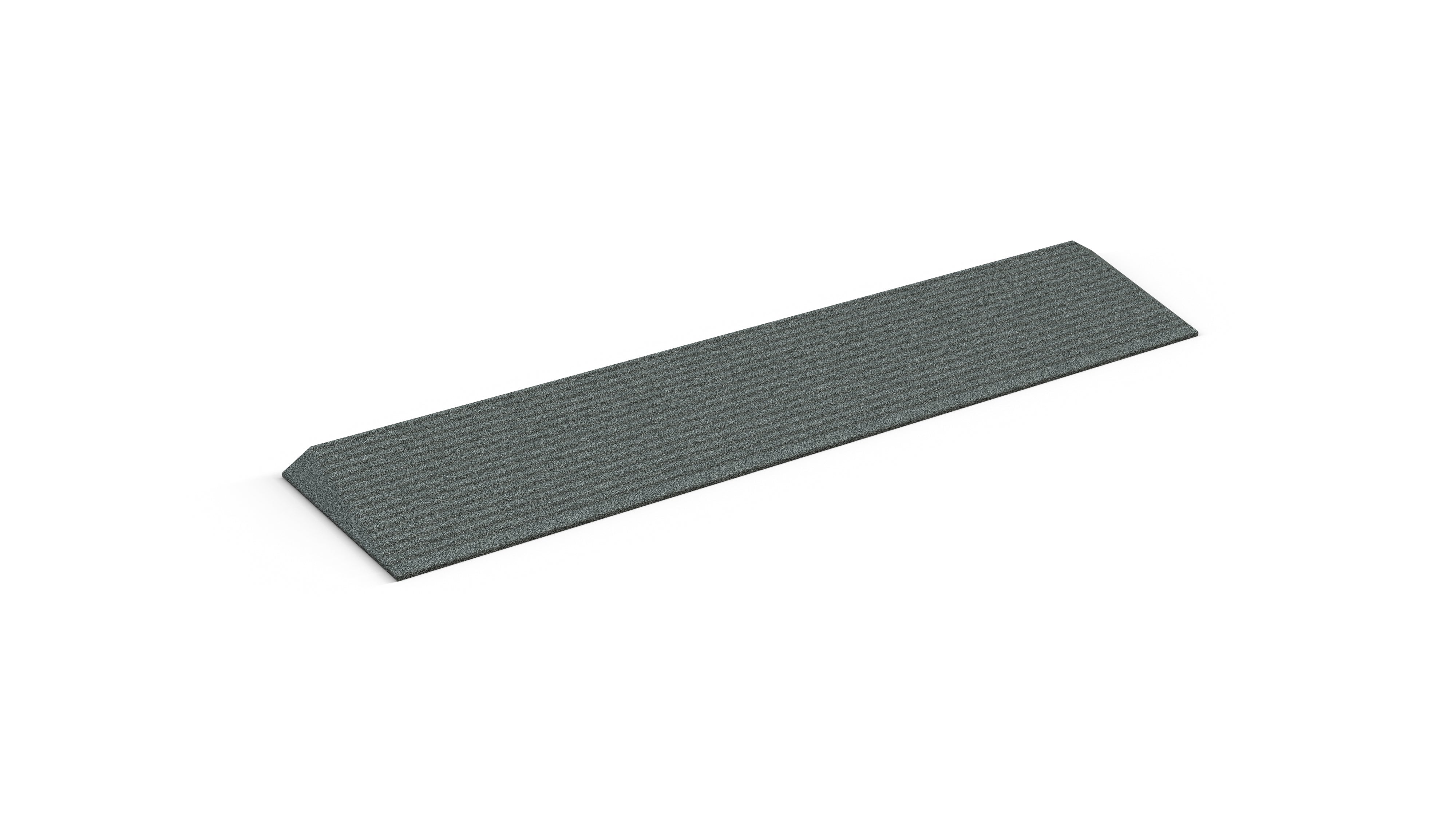

Black or Grey

Usable Size (H x L x W)

1/2"
x 3"
x 36-1/16"

3/4"
x 5-3/4"
x 36-1/16"

1"
x 8-1/2"
x 36-1/16"

1-1/4"
x 11-1/4"
x 36-1/16"

1-1/2"
x 14"
x 36-1/16"

1-3/4"
x 16-3/4"
x 36-1/16"

2"
x 19-1/2"
x 36-1/16"

2-1/4"
x 22-1/4"
x 36-1/16"

2-1/2"
x 25"
x 36-1/16"

Overall Size (H x L x W)

1/2"
x 3"
x 36-7/8"

3/4"
x 5-3/4"
x 37-5/8"

1"
x 8-1/2"
x 38-3/8"

1-1/4"
x 11-1/4"
x 39-1/8"

1-1/2"
x 14"
x 39-7/8"

1-3/4"
x 16-3/4"
x 40-5/8"

2"
x 19-1/2"
x 41-3/8"

2-1/4"
x 22-1/4"
x 42-1/8"

2-1/2"
x 25"
x 42-7/8"

Weight

2 lbs.

4 lbs.

8 lbs.

11 lbs.

18 lbs.

21 lbs.

29 lbs.

38 lbs.

49 lbs.

Weight Capacity

850 lbs.

Country of Origin

USA

Warranty

Lifetime

- Refer to your mobility equipment's owner guide for acceptable ramp usage, including proper slope/incline, chair direction, etc.; never exceed its recommendations.

- Weights and dimensions are approximate and subject to change.

- For additional specs, see “Documents” tab.

Brochure Technical Specifications Instructions Warranty (Lifetime Warranty)

Although it's our intent to keep all documents current, some documents are subject to change and may take time to update. If you are unsure whether you have the most current revision or if your product is different, contact our technical support.

Is the edge that butts up to the threshold straight or beveled as well?

The edge is straight (no bevel) and perpendicular to the ground. Only the sides of the mat are beveled.

Can this be used with a sliding glass door?

Yes, this mat is perfect for sliding glass doors because it doesn’t interfere with the track. Put one mat on the inside of the door and one on the outside to help eliminate the trip hazard the door track can present. The mat is made to withstand weather conditions of all sorts so it can be used both indoors and outdoors.

How thin do these mats taper to at the bottom?

The mat tapers to approximately .125”.

Can this be used for entering a stand-up shower? Will it hold up to water?

Yes, the mat can be used for this particular application as it will hold up to the water. These mats were designed for both indoor and outdoor use so they can withstand the elements.

Does this come in different colors?

Yes, this mat is available in two different colors: black and grey.

Does the mat stay in place?

The rubber mat is fairly heavy by nature; however, we do recommend securing it in place to ensure lack of movement. Hardware is supplied for securing the mat to a wood or concrete surface.
