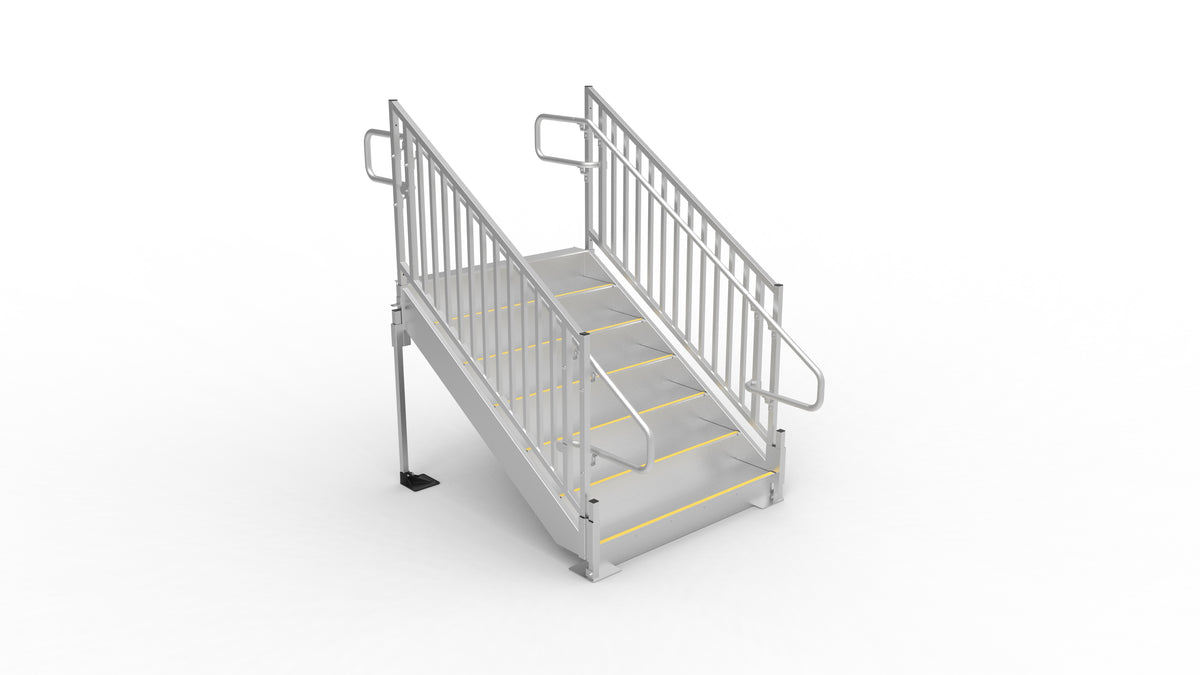

PATHWAY® HD Adjustable Stair System

The PATHWAY® HD Adjustable Stair System is a modular aluminum stair solution built for strength, safety, and code compliant access across temporary structures, permanent buildings, and industrial applications. Part of the PATHWAY HD Code Compliant Modular Access System, these prefabricated closed-riser stairs easily integrate with platforms and ramps to create the exact access solution your site requires.

Constructed from commercial-grade, aircraft-quality aluminum, the system offers permanent-level durability with modular flexibility. Field-adjustable for precise height requirements, the PATHWAY HD adjustable stair installs quickly and offers safe, dependable access in virtually any environment.

Designed to support ADA, IBC, OSHA, and many local code requirements when specified and installed correctly.

For more information regarding compliance, please contact us at (800) 451-1903 for more information or submit a request for quote below.

3-Year Warranty

Ask any question on this product
SLIP-RESISTANT TREAD
SLIP-RESISTANT TREAD

All walking surfaces on the PATHWAY HD feature Gecko Grip®, our patented, raised-rib tread featuring a 2-tier, 3-point gripping surface. The innovative design utilizes deep knurling, which provides enhanced cross-directional traction when entering and exiting the system.

Our welded, extruded tread provides reinforced strength and a permanent slip-resistant surface.

HIGH-QUALITY ALUMINUM

Aircraft-Grade Aluminum: Corrosion-resistant with naturally non-combustible materials to outlast the competition.

HIGH-QUALITY ALUMINUM
EASY TO INSTALL
EASY TO INSTALL

Universal bolt-together components for quick and easy install without specialty tools, heavy equipment, or on-site fabrication. The system can be reconfigured, relocated, and accommodates virtually any layout or lot configuration. Independently adjustable legs allow for simple, precise on-site leveling.

Models available to accommodate heights of 12”-67” with each model having 6” of adjustability to meet your exact specifications without needing a custom solution, while also allowing for uniform riser heights for code-compliant installation.

CUSTOMIZED CONFIGURATIONS

Custom designs are available to meet your specific project requirements. Contact our team to discuss tailored solutions.

Site-specific stamped drawings available.

CUSTOMIZED CONFIGURATIONS
QUICK SHIP
QUICK SHIP

Standard configurations ship in 2-3 business days to help eliminate costly delays.

MADE IN THE USA AND CARRIES A 3-YEAR WARRANTY

MADE IN THE USA AND CARRIES A 3-YEAR WARRANTY


PATHWAY HD Adjustable Stair System
Made Of Aluminum
✓
Slip-Resistant Surface
✓
Rated Load
100 lbs. psf and a concentrated vertical load of 300 lbs. over an area of 4 square inches
Heights
12”-18”, 19”-25”, 26”-32”, 33”-39”, 40”-46”, 47”-53”, 54”-60”, and 61”-67”
ADA & IBC Compliant Heights
14”, 21”, 28”, 35”, 42”, 49”, 56”, and 63”
Standard Overall Width
64”
Standard Stair Width
56”
Guard Height
42-1/4”
Handrail Height
36”
Warranty
3-year

Dimensions are approximate and subject to change.

For additional specs, see “Documents” tab.


Brochure Technical Specifications Instructions Warranty (3-Year Warranty )

Drawings

PATHWAY HD Adjustable Stair

Although it's our intent to keep all documents current, some documents are subject to change and may take time to update. If you are unsure whether you have the most current revision or if your product is different, contact our technical support.



Are these stairs compatible with PATHWAY® HD ramps and platforms?

Yes, our stairs can not only be attached to an existing platform or deck, but they can also be connected to our PATHWAY HD platforms and incorporated into a PATHWAY HD ramp system (with custom components).

What sizes do the stairs come in?

Eight standard, off-the-shelf models are available to accommodate heights ranging from 12”-67”. Each model has 6” of height adjustability. Stairs also come in a standard width of 56”. Custom sizes are available; request a quote from our team.

Are the stairs adjustable?

Yes, our independently adjustable legs provide a range of height adjustability. This is especially convenient when installing the stair on uneven terrain. 6” of adjustability is available on the front legs, providing a range of heights each stair model accommodates.

Do the stairs have open or closed risers?

Our PATHWAY HD stairs feature closed risers to meet ADA and IBC guidelines. If you are looking for an open-riser, OSHA-compliant stair, check out our FORTRESS® OSHA Stair System.

What kind of tread is used on the stairs?

Our patented Gecko Grip® tread. This specialized raised-rib tread has a 2-tier, 3-point gripping surface. The innovative design also utilizes deep knurling, which provides enhanced cross-directional traction.

What should I use for ice and snow removal?

We suggest using a Magnesium Chloride salt substitute, along with a broom and plastic snow shovel for clearing debris.

Do you offer Professional Engineer stamped drawings?

Yes, we do offer this service for a fee.

How is the stair system installed?

Installation is typically done using basic tools and mechanical fasteners. Components arrive pre-engineered and ready for assembly, which helps reduce installation time compared to welded or fully custom stairs. Installation instructions are included with the product via QR code and are available on the “Documents” tab.

Does the system require welding on site?

No. The stair system is designed for bolted assembly. This eliminates the need for on-site welding, hot work permits, and specialized labor.

Can I connect multiple platforms at the top of the stair system?

Yes, multiple platforms can be connected together to create the top landing size and layout that you need.

Does the stair system have to be against a building or can it face the building straight on?

The stair system can accommodate either orientation.

Is bracing needed?

Bracing is needed on stairs set at 36” and above.

Are custom options available?

Yes, we have customization options available if our standard, off-the-shelf sizes and configurations aren’t suitable for your site. Contact our team for details.
